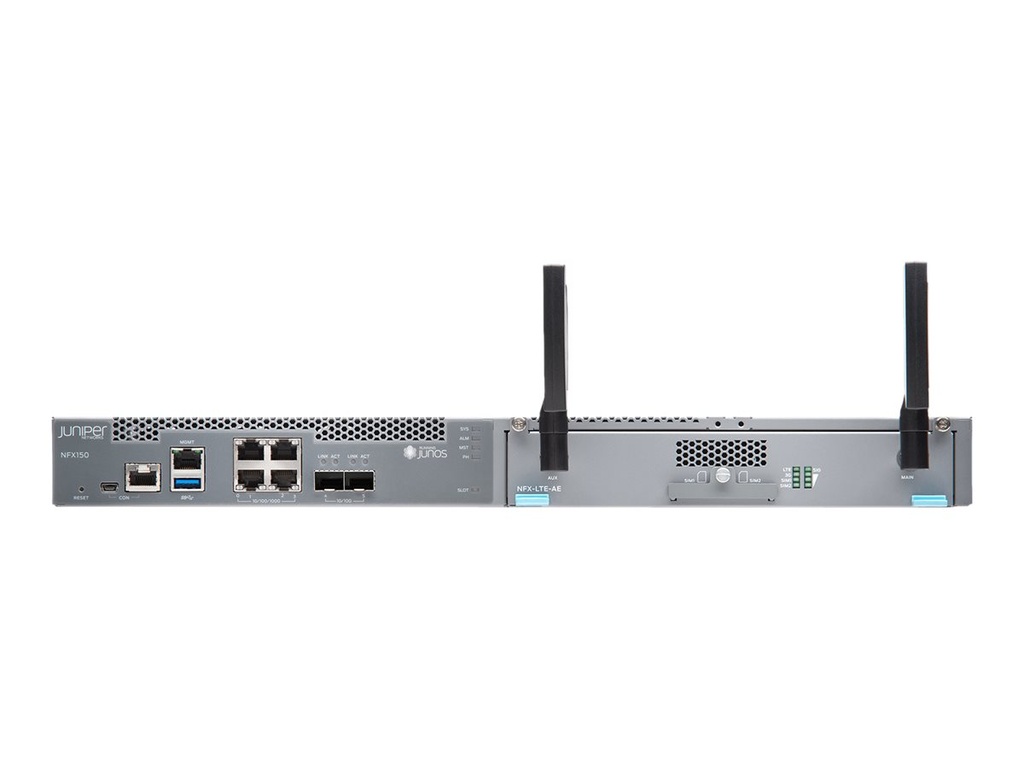

Juniper NFX Series Network Services Platform NFX150

Anwendungsbeschleuniger

1U

44.09 cm

39.38 cm

4.37 cm

5.9 kg

1 x Intel Atom

1

16 GB DDR4 SDRAM

SSD 200 GB

Rack-montierbar

Luftstrom von vorne nach hinten

Kabelgebunden

TCP/IP, UDP/IP, PPPoE, DNS

OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, statisches IP Routing, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, MSDP, ECMP, MPLS, Bidirectional Forwarding Detection (BFD), RSVP

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI

MST-Instanzen: 64
QoS-Prioritätswarteschlangen pro Port: 8
IGMP-Snooping-Einträge: 1000
Maximale Anzahl VNFs: 3

Flusskontrolle, Layer 3 switching, Layer 2 switching, VLAN-Unterstützung, IGMP Snooping, IPv6-Unterstützung, Spanning Tree Protocol (STP) Support, unterstützt Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP) Support, IPSec Virtual Private Network (VPN), Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), MPLS VPN, DHCP-Server, DHCP-Proxy, Temperatursensor, Per-VLAN Spanning Tree Plus (PVST+), IPv4-Unterstützung, DHCP-Relais, DHCP-Client, Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), Strict Priority (SP), 802.1x-Authentifizierung, VoIP-Unterstützung, unterstützt DiffServ Code Point (DSCP), Smoothed Deficit Weighted Round Robin (SDWRR), Virtual Private LAN Service (VPLS), Secure Copy (SCP), Label Distribution Protocol (LDP), Network Timing Protocol (NTP), auf Richtlinie basierte Weiterleitung, VLAN Double Tagging (Q-in-Q), Voice VLAN, Connectivity Fault Management (CFM), LLDP-MED, Private VLAN, Perfect Forward Secrecy (PFS), unterstützt IP Security (IPSec), DHCP Helper, MAC based VLAN, VLAN Tagging, Anschluss-basiertes VLAN, Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), quellbasiertes Routing, site-site IPsec VPN, VPN-Überwachung, Circuit Cross-Connect (CCC), Translational Cross-Connect (TCC), Next-Generation Multicast VPN (NG-MVPN)

DES, Dreifach DES, MD5, IKE, SHA-1, 256-Bit-AES, IKEv2, AES-GCM, 256-bit SHA, 128-bit SHA

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak

1 (gesamt)/ 1 (frei) x Erweiterungssteckplatz

4 x 1000Base-T - RJ-45
2 x 10Gb Ethernet - SFP+ (WAN)
1 x 1000Base-T (Verwaltung) - RJ-45
1 x Konsole - RJ-45
1 x Mini-USB - Type B
1 x USB 3.0 - Type A

TUV GS, CISPR 22 Klasse A, cUL, EN55024, CB, ICES-003 Klasse A, CSA NRTL/C, UL 60950-1 Second Edition, WEEE, RoHS, REACH, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, AS/NZS CISPR 32 Class A, CISPR 32 Class A, EN 60825-1 Second Edition, RoHS

Externer Netzadapter

Wechselstrom 120/230 V

75 Watt

Wind River Linux 8

JUNOS

0 °C

40 °C

5 - 90% (nicht kondensierend)
